Pneumatic Piston Rod

Pneumatic Piston Rod

Product description:

A Pneumatic piston rod is a critical component of a pneumatic cylinder system, responsible for converting compressed air energy into linear mechanical motion. It connects the piston inside the cylinder to the external load or mechanism, transferring the generated force smoothly and efficiently. As an essential part of pneumatic actuators used in automation, manufacturing, and machinery systems, the quality and precision of the pneumatic piston rod directly affect the cylinder’s performance, durability, and reliability.

The piston rod is a connecting component that supports the piston in performing work. It is mostly used in oil cylinders and air cylinders as motion execution components and is a frequently moving and highly technical motion component. Taking the hydraulic cylinder as an example, it is composed of the cylinder barrel, piston rod (oil Cylinder rod), piston, and end cover. The quality of its processing directly affects the lifespan and reliability of the entire product. The processing requirements for the piston rod are high. Its surface roughness should be within the range of Ra0.4 to 0.8 μm, and strict requirements are imposed on coaxiality and wear resistance.

Parameter:

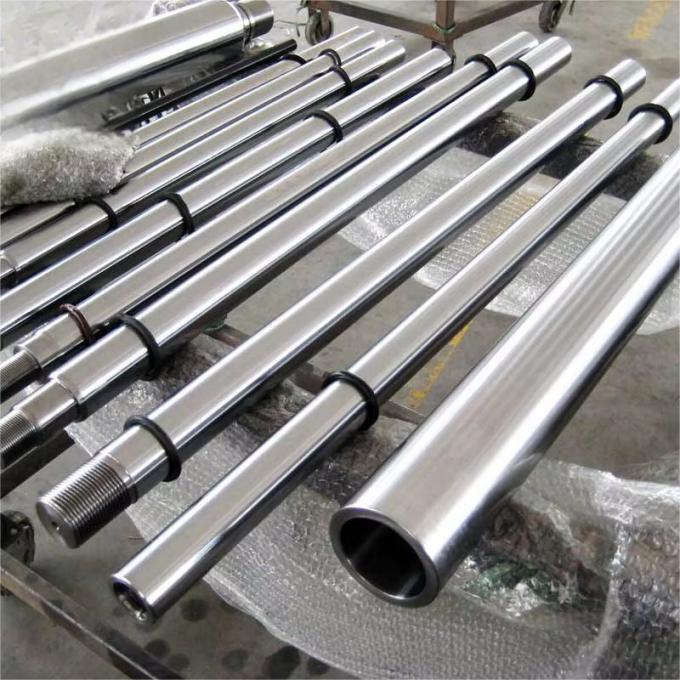

Pictures:

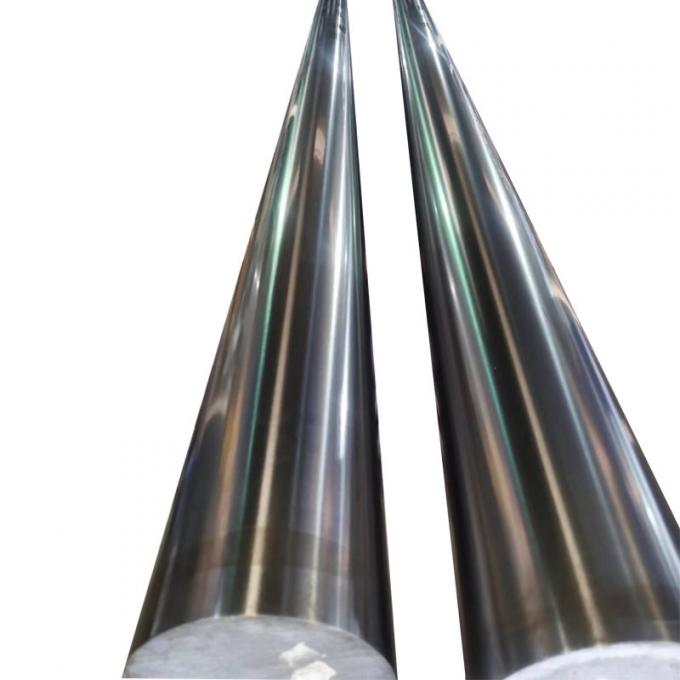

Structure and Material

The pneumatic piston rod is typically made from high-quality materials such as carbon steel (C45 / AISI 1045), alloy steel (AISI 4140 / 42CrMo), or stainless steel (AISI 304 / 316), depending on the application environment. These rods undergo precision machining, hard chrome plating, and mirror polishing to achieve excellent surface quality and dimensional accuracy. For applications that require corrosion resistance—such as food processing, chemical plants, or marine environments—stainless steel pneumatic piston rods are often preferred due to their superior anti-rust properties.

The surface of a pneumatic piston rod is generally treated with a hard chrome layer (20–30 μm thick), which significantly improves surface hardness, reduces friction, and enhances wear resistance. The combination of material strength and surface protection ensures stable operation and a long service life under continuous air pressure cycles.

Key Features and Advantages

• High Surface Smoothness – Achieves Ra ≤ 0.2 μm for minimal seal wear and smooth operation.
• Corrosion Resistance – Chrome or nickel plating prevents rust and degradation in humid or chemical environments.
• High Dimensional Accuracy – CNC machining ensures precise tolerances for perfect fit with cylinder bores and seals.
• Fatigue and Impact Resistance – Quenched and tempered materials withstand high-frequency reciprocating motion.
• Long Service Life – Enhanced coating adhesion and hardness reduce maintenance and replacement frequency.
• Customizable Design – Available in a variety of diameters, lengths, and coatings for different pneumatic applications.

Manufacturing Process

The production of pneumatic piston rods follows a series of precision steps to guarantee quality and performance:

• Material Preparation: Selected high-grade steel rods or bars are cut to specified lengths.
• Heat Treatment: Quenching and tempering improve toughness and fatigue resistance.
• CNC Machining: Threaded ends, grooves, and shoulders are accurately machined for precise assembly.
• Centerless Grinding: Ensures high straightness and smooth surface finish.
• Hard Chrome Plating: A dense layer of chrome increases surface hardness (up to HRC 60–65).
• Mirror Polishing: Final finishing produces an ultra-smooth reflective surface.
• Quality Inspection: Each rod undergoes testing for straightness, coating thickness, surface hardness, and tolerance accuracy.

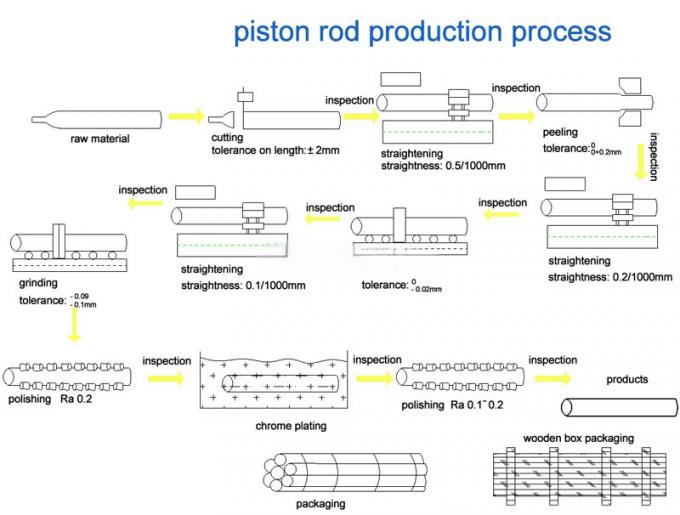

Production process of the piston rod:

Applications:

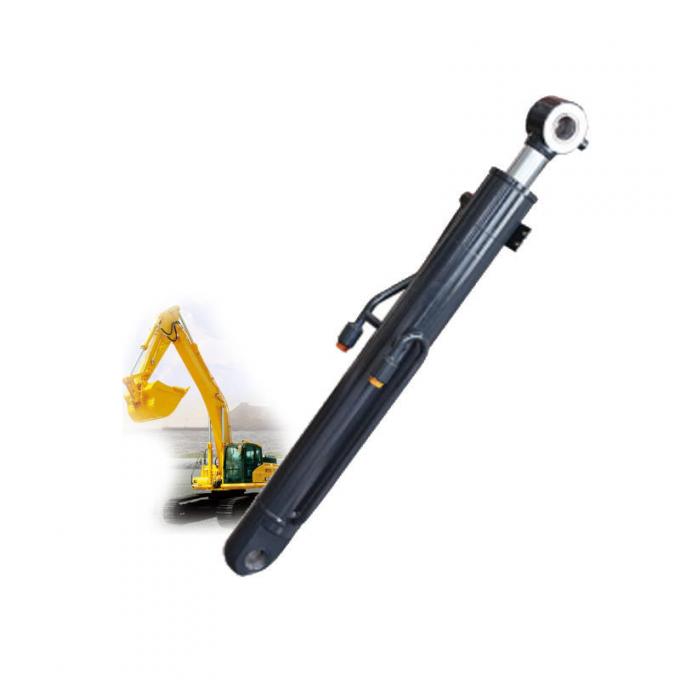

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core actuating component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear-rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

Pneumatic piston rods are widely used in:

• Automation equipment and robotic actuators
• Packaging machines and conveyor systems
• Textile and printing machinery
• Food and pharmaceutical processing equipment
• Material handling systems and assembly lines
• Pneumatic valves, grippers, and positioning devices
• In industries where high-speed reciprocating movement and precise control are essential, the pneumatic piston rod ensures consistent operation and high efficiency. It plays a vital role in enhancing productivity and reducing downtime in modern automated production systems.
